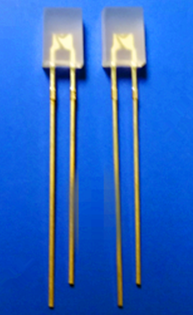

357方形单色系列LED插件部份
详情说明 / Details

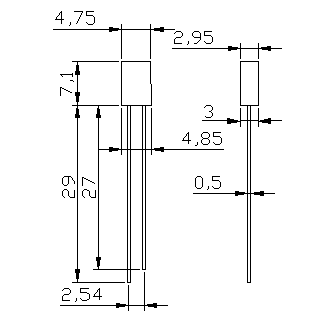

| 插件3*5*7mm单色系列（胶体3.0*5.0*7.0mm）MOQ:1000PCS |
 |  |
|
|
|
|
|
|
|
| 产品型号（Model） | 颜色（Color） | 产品规格（mm） | 波长范围(nm) | 电压范围(V) | 电流(mA) | 发光角度(deg) | 亮度范围(mcd) | 备注 |
| XM-L357RP | Red | 3.0*5.0*7.0 | 620-630 | 1.8-2.4 | 20 | | | 具体规格参数请查阅旭铭光电对应产品型号规格书（可以根据客户要求另定制产品） |
| XM-L357GP | Green | 3.0*5.0*7.0 | 520-530 | 2.8-3.4 | 20 | | |
| XM-L357BP | Blue | 3.0*5.0*7.0 | 460-470 | 2.8-3.4 | 20 | | |
| XM-L357YP | Yellow | 3.0*5.0*7.0 | 585-595 | 1.8-2.4 | 20 | | |
| XM-L357YGP | Yellow Green | 3.0*5.0*7.0 | 565-575 | 1.8-2.4 | 20 | | |
| XM-L357OP | Orange | 3.0*5.0*7.0 | 600-610 | 1.8-2.4 | 20 | | |
| XM-L357WP | White | 3.0*5.0*7.0 | | 2.8-3.4 | 20 | | |
| XM-L357ULP | Ultraviolet | 3.0*5.0*7.0 | 400-430 | 2.8-3.4 | 20 | | |
